Ant Rentals | ER636H Canopy

SDLG

Click the image to enlarge; 5 images in total

Quantity:

Features

The ER636H offers a Kubota engine perfectly matched with the hydraulic system, providing optimal break out force and lifting capacity.
Optimized large-displacement travel motor with high traction force, offers a solution for various complex working conditions.

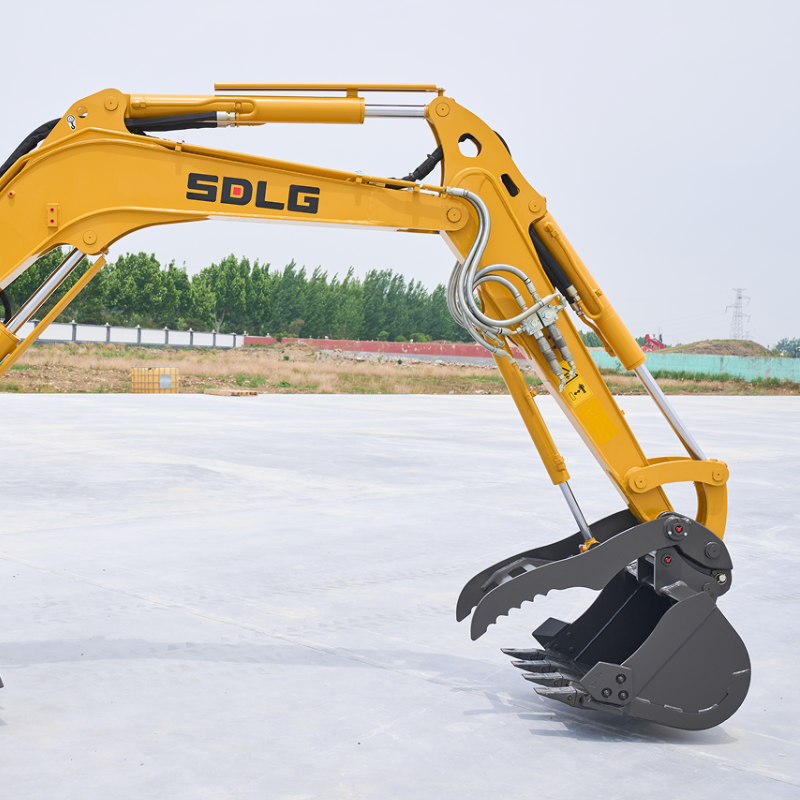

Standard units offer X1/X3 pipelines, meeting a wide range of attachments.
Auxiliary pipelines with 5 quick connectors, allow attachments to be changed quickly and efficiently.

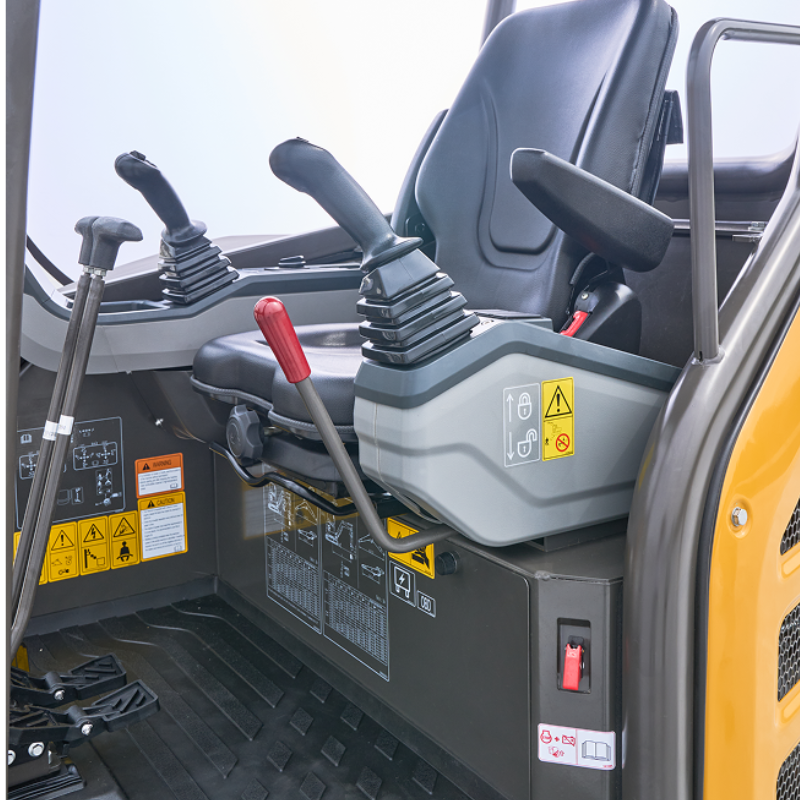

ROPS&TOP guard certified canopy with double rearview mirrors and three LED lights.
Filters are centrally located, providing easier maintenance.

Technical Parameter

Operating weight,kg (lbs)	3,740(8,245)
Engine model	Kubota D1703
Rated power,kw(hp)	18.2(24.4)
Rated engine speed,rpm	2200
Displacement,ml(in³)	1,647(100.5)
Pump capacity,L/min(gal/min)	88(23.3)
Main relief set pressure,bar(psi)	240(3,480)
Max. digging force of bucket,kN(lbf)	32(7,194)
Max. digging force of arm,kN(lbf)	23.5(5,283)
Travel low speed,km/h(mi/h)	2.1(1.3)
Travel high speed,km/h(mi/h)	3.7(2.3)
Gradeability,°	30
Swing speed,r/min	9
Blade(width*height),mm(in)	1700(66.9'')*350(14'')
Ground pressure,kPa(psi)	33.5(4.9)
Fuel tank,L(gal)	45(11.9)
Boom length,mm(ft in)	2,450(8'0.5'')
Arm length,mm(ft in)	1,400(4'7.1'')
Bucket capacity,m³(yd³)	0.12(0.16)
