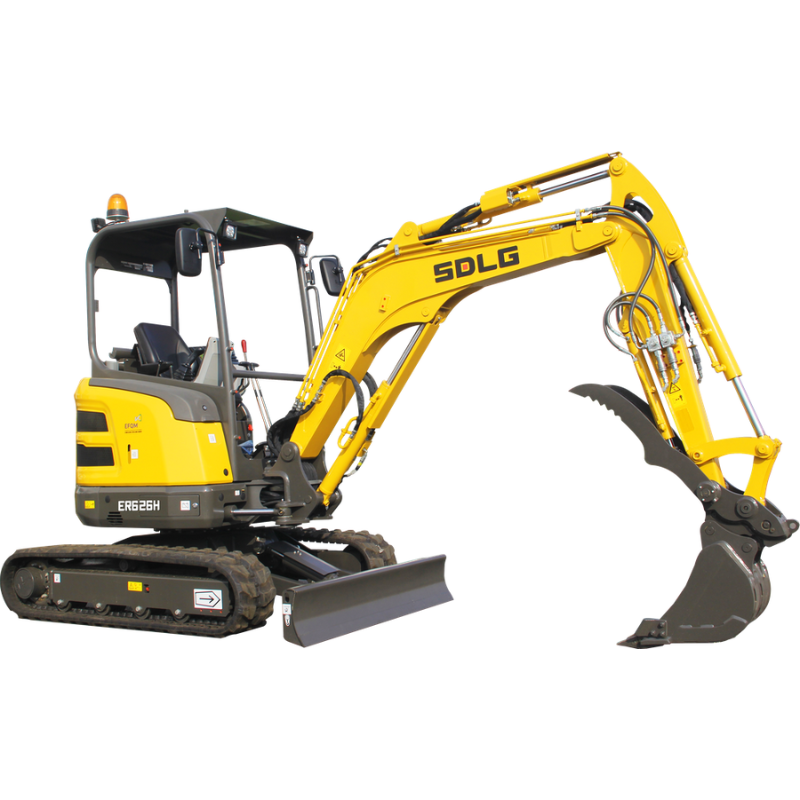

Ant Rentals | ER626H

SDLG

Click the image to enlarge; 2 images in total

Quantity:

Features

The ER626H is equipped with Kubota engine delivering strong power, exceptional break outforce, great handling performance, and smooth and effortless command of the boom offset
and swing which is ideal for working in confined spaces.
Standard machines have X1/X3 pipelines, meeting a wide range of attachments.
Auxiliary pipelines with 5 quick connectors, allow attachments to be changed quickly andefficiently.
Equipped with a mechanical suspension seat, which is comfortable and prevents fatigue.
ROPS&TOP guard certified canopy with double rearview mirrors and three LED work lights.
Filters are centrally located, providing easier maintenance.

Technical Parameter

Operating weight,kg (lbs)	2,850(6,283)
Engine model	Kubota D1105
Rated power,kw(hp)	15.4(20.7)
Rated engine speed,rpm	2400
Displacement,ml(in³)	1,123(68.5)
Pump capacity,L/min(gal/min)	70(18.5)
Main relief set pressure,bar(psi)	240(3,480)
Max. digging force of bucket,kN(lbf)	24(5,395)
Max. digging force of arm,kN(lbf)	18(4,047)
Travel low speed,km/h(mi/h)	2.3(1.4)
Travel high speed,km/h(mi/h)	4(2.5)
Gradeability,°	30
Swing speed,r/min	10.5
Blade(width*height),mm(in)	1,550(61")*291(11.5")
Ground pressure,kPa(psi)	27(3.9)
Fuel tank,L(gal)	34(9)
Boom length,mm(ft in)	2,130(6’11.8")
Arm length,mm(ft in)	1,300(4’3.2")
Bucket capacity,m³(yd³)	0.06(0.08)
