Ant Rentals | E620H

SDLG

Click the image to enlarge; 8 images in total

Quantity:

Features

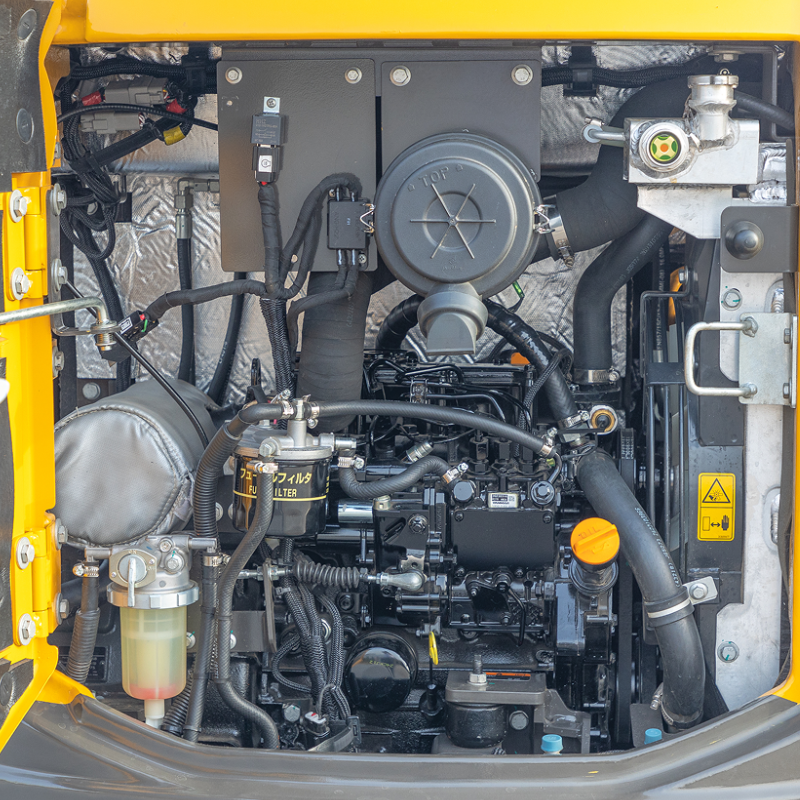

The E620H is equipped with a Yanmar engine providing ample power for all applications.
Standard units offer X1/X3 pipelines, meeting a wide range of attachments.

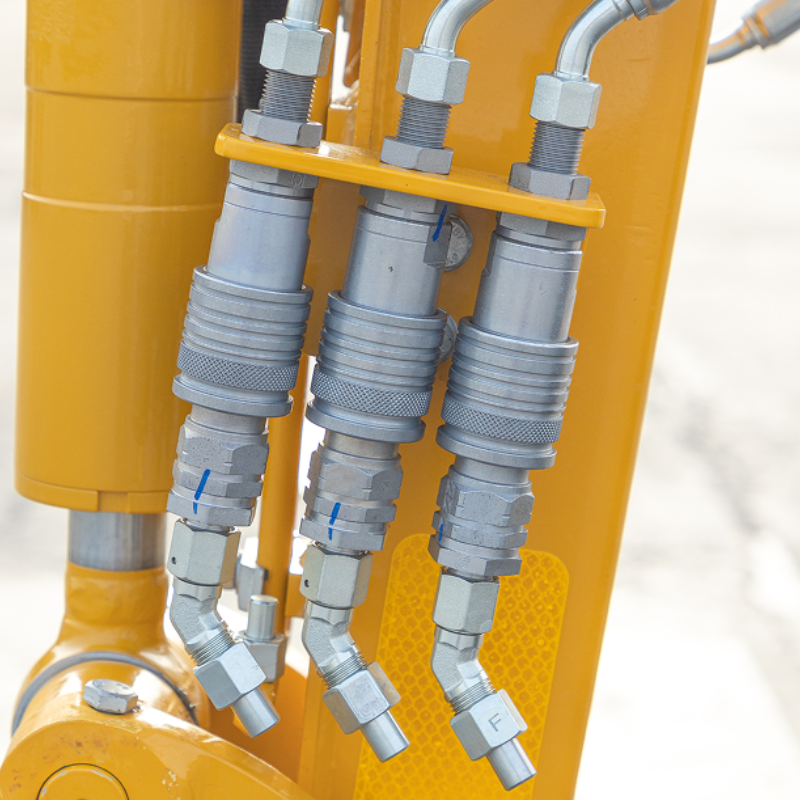

Auxiliary pipelines with 5 quick connectors, allow attachments to be changed quickly and efficiently.
Full-color, high-resolution 7-inch screen that visually monitors the status of the unit.

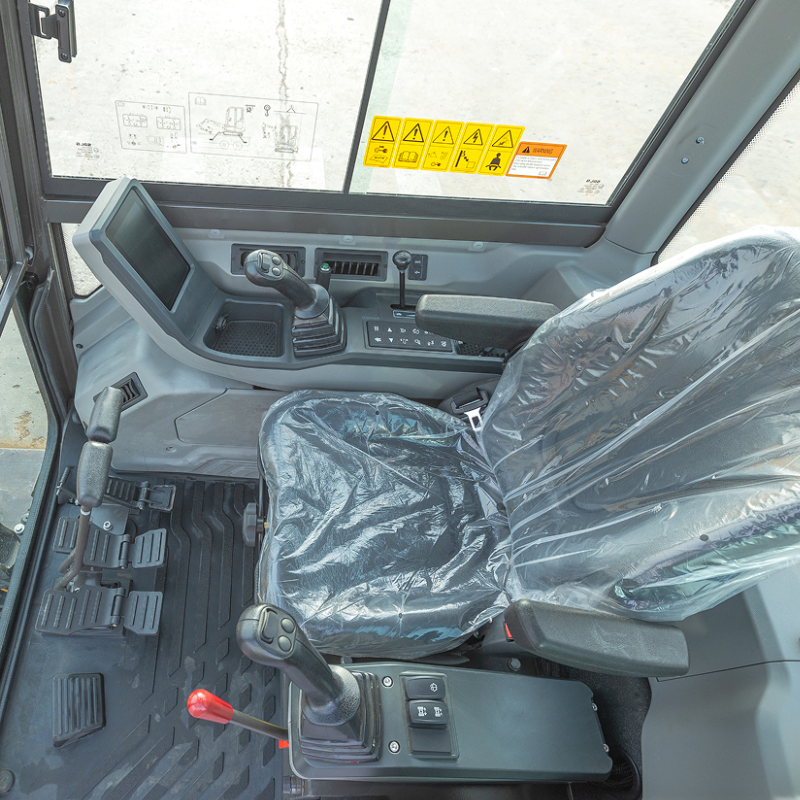

ROPS certified cab with air conditioning,double rearview mirrors , and three LED lights.

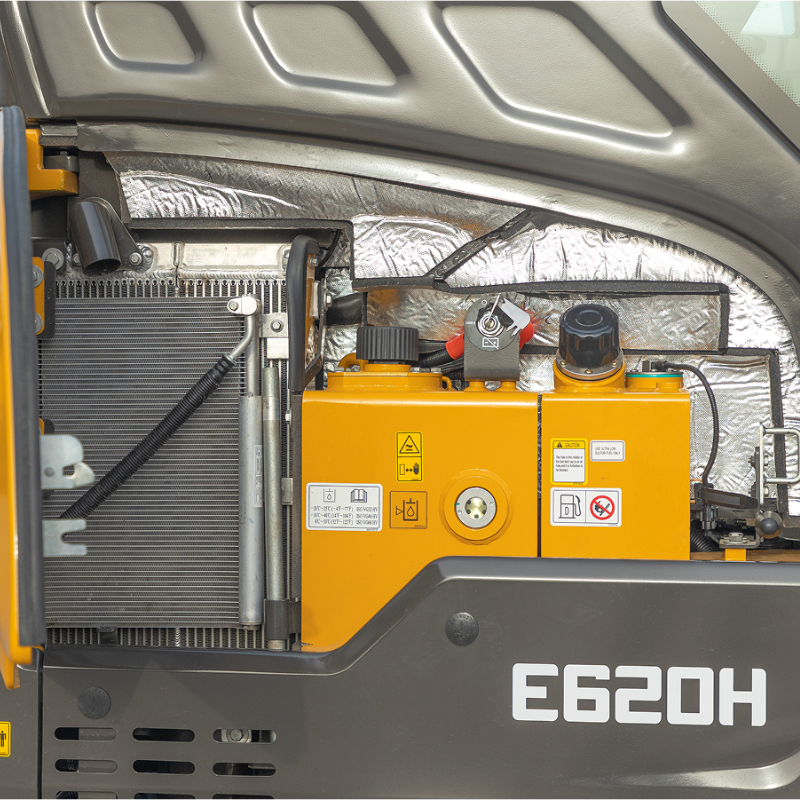

Filters are centrallylocated, providing easier maintenance.

Technical Parameter

Operating weight,kg (lbs)	2235（4927）
Engine model	YANMAR 3TNV80F
Rated power,kw(hp)	14.6（19.6）
Rated engine speed,rpm	2400
Displacement,ml(in³)	1267（77）
Pump capacity,L/min(gal/min)	52（11.4）
Main relief set pressure,bar(psi)	240（3480）
Max. digging force of bucket,kN(lbf)	16.5（3709）
Max. digging force of arm,kN(lbf)	10（2248）
Travel low speed,km/h(mi/h)	2（1.2）
Travel high speed,km/h(mi/h)	4（2.5）
Gradeability,°	30
Swing speed,r/min	9.2
Blade(width*height),mm(in)	1240（48.8“）*275（10.8”）
Ground pressure,kPa(psi)	35（5）
Fuel tank,L(gal)	20（5.3）
Boom length,mm(ft in)	1830（6'）
Arm length,mm(ft in)	965（3'2"）
Bucket capacity,m³(yd³)	0.04（0.05）
Overall shipping size,mm(ft in)	3805（12'5.8"）980（3'2.6"）2500（8'2.4"）
